KSN Series




KSN Dryers process raw materials through sun-drying and partial-composting by utilizing solar heat and frequent agitation to dry the manure efficiently.

  (Hatchet Blade)

(Hatchet Blade)

Also, Hatchet Blades are used so that the raw materials can be piled up to 300mm and therefore, this machine can be used as a Semi-Composter. Materials such as bird feathers can be decomposed and the final products are produced with better quality compared to conventional drying machines.


 KSN-6000

KSN-6000

 Final Product

Final Product



Machine Movement: All-In All-Out

  1. Fill the entire pit with the raw materials at once.
  2. The machine will start agitating back and forth. The raw materials stay in the same place.
  3. After few days to few weeks, take out the final products at once from the pit.
    *The processing period can be adjusted depending on the weather and season.

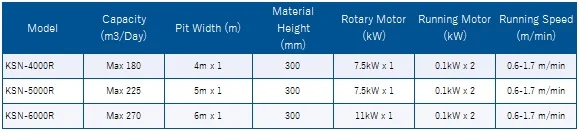

Specification: Single Pit Type (1 Pit)

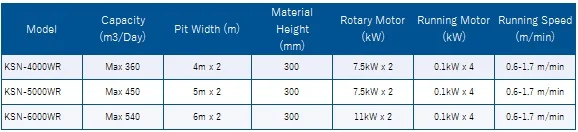

Specification: Double Pit Type (2 Pits)

( Click on the table to enlarge it )
