Oval Growth system




Oval Growth

Oval Growth is a system for poultry house management, which collects data from Egg Counters, Feed Scale, Temperature Sensors and Water Meters to analyze the situation of the farm and as a result to help you increase the egg production.





Software

Data Comparison (Graph)

The Oval Box installed in each house, which manages data automatically accumulates data from each sensors every 10 minutes. The collected data will be stored in the Oval Box for one month. The data accumulated in the server can be easily compared with the past information by showing the data in graphs. In addition, it is also possible to easily compare the production condition recommended by the manufacturer with the actual condition by displaying the chicken manual.

                              (Oval Box)

                             (Oval Box)


                                       (Weekly Graph)

                                      (Weekly Graph)



Alarm Function:

                                       (Alarms shown on the Main Screen)

                                      (Alarms shown on the Main Screen)

Oval Growth also has an alarm function. When the collected data is far from the standard, alarms will be shown on the main screen. This helps you to acknowledge abnormal situations and to detect problems at an early stage.



Weekly Table

                                                       (Weekly Table)

                                                      (Weekly Table)

The data accumulated in the Oval Growth can be displayed as a table for each day (Daily Table) & week (Weekly Table).

Daily Table is useful to know the details of the house condition, while Weekly Table is useful when starting a new batch to compare with the past data.













 Remote Management via Internet

                                                     (Camera Shots)

                                                    (Camera Shots)

Stay connected and check the latest data via internet even when you are in a remote place. You can also check inside the poultry house using a network camera, as long as you are connected to the internet.



Hardware:

Egg Counter

Oval Growth can manage up to 56 Egg Counters (EL type) per house. This way you will be able to know the egg production rate from each tier, which helps you to find tiers with less performance and to take measures.

We have 2 types of Egg Counters; EL type -- to count the number of eggs from each tier, and EC type -- to be attached to your bar conveyors to count the eggs from each row.

 EL Type (For each Tier)

EL Type (For each Tier)

 EC Type (For each Row)

EC Type (For each Row)

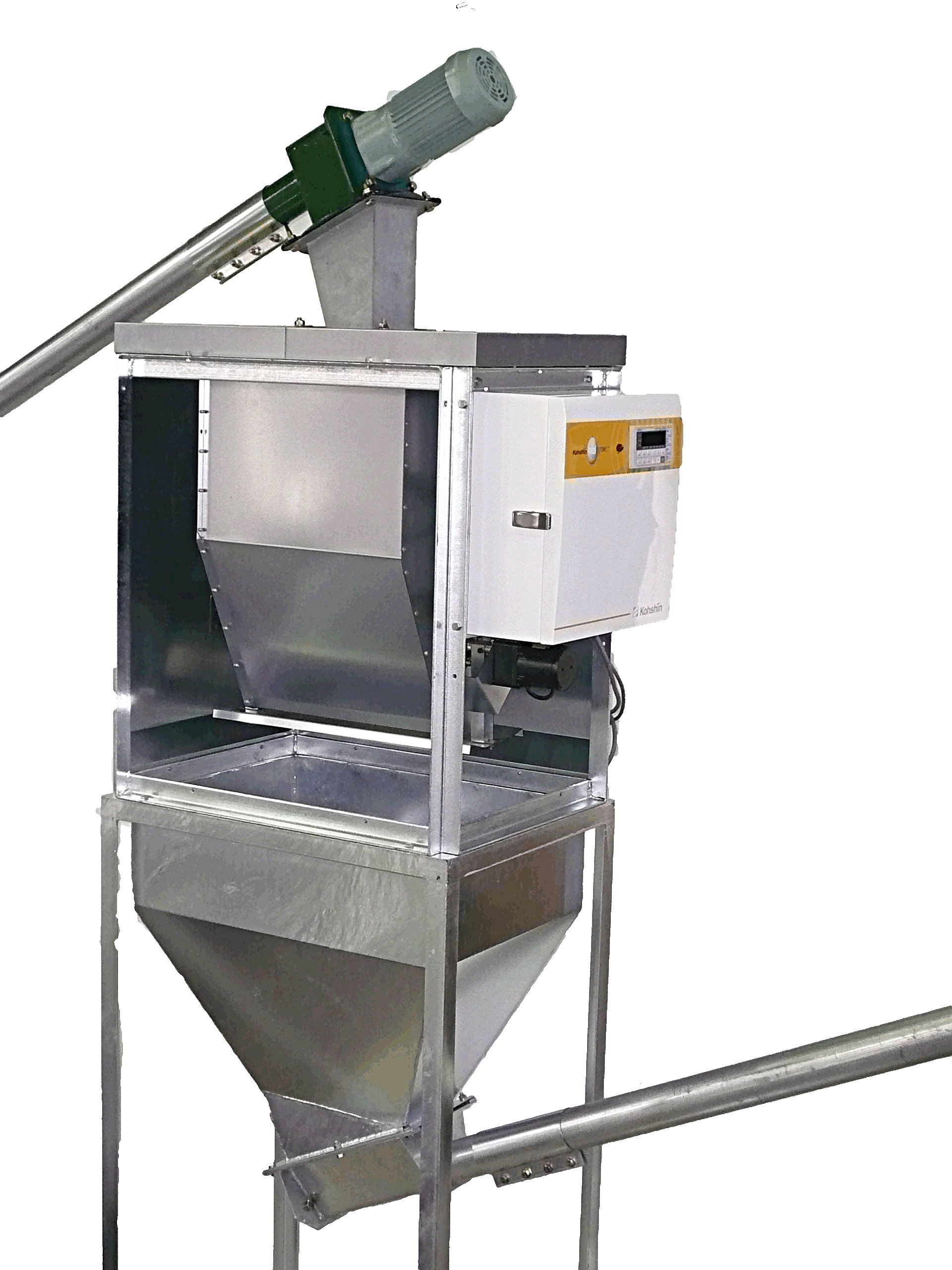

Feed Scale

Feed Scale is a weighing machine for feed equipped with load cell.

Unlike conventional tank scales, it can be operated while filling the silo thanks to its “Tare Correction” function, which corrects the weighing gap accurately. It is very useful to know the accurate amount of feed consumed at each house, and to figure out the condition of the chickens.

Specification

※The weighing speed varies depending on the capacity of the feeder.

( Click on the table to enlarge)

(Feed Scale)
