KNLL Composter Manure Treatment Technology

Convert Large Quantities of Poultry and Livestock
Manure into High-Quality Organic Fertilizer

Our composting technologies use aerobic bacteria to speed up the process, eliminate pathogens and weed seeds, control odor and greenhouse gas emissions, and produce a nutrient-rich final product.

Features of the product

Processing Scale Size

It is available in a diverse range of models that cater to both small-scale and large-scale processing needs.

Principle of Operation

We offer two types of composters to cater to different needs. The Continuous type allows for materials to be placed on the INPUT side, with the final product conveniently retrieved from the OUTPUT side. On the other hand, the All-In-All-Out type allows for materials to be placed and removed from any side, providing flexibility and convenience.

Aeration System

Our composters are equipped with a specially designed aeration system that injects the optimal amount of air. This effectively kills hazardous pathogens and bacteria, while also enhancing the material's ability to be shaped uniformly.

Blade Type

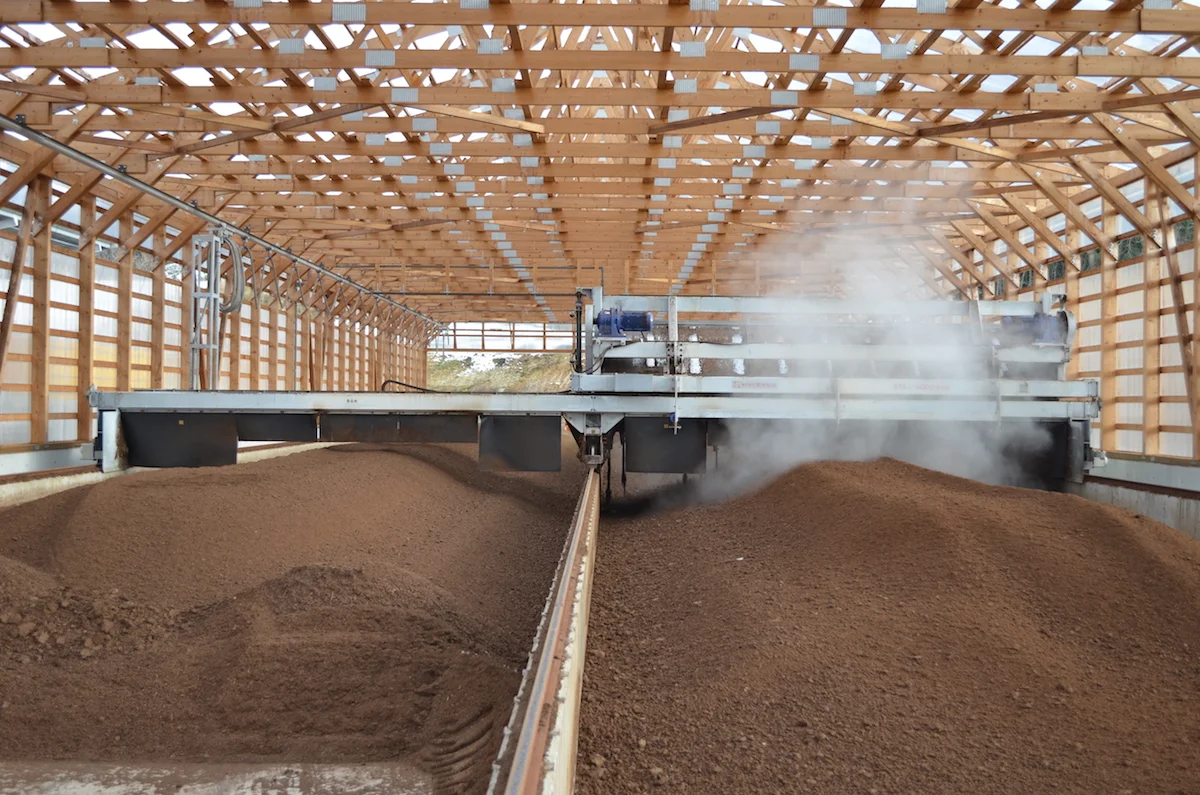

What sets our composters apart is the incorporation of specially designed hatched blades. These hatchet-type blades revolutionize the composting process. They allow for the gathering of manure in a mountain-like shape, effectively increasing the surface area and facilitating better air circulation throughout the compost. Maintaining the height in a mountain shape is crucial as it ensures the internal temperature of the manure remains optimal for fermentation.

Final Product

Since our composters are equipped with uniquely designed hatchet blades, they ensure uniform chopping of the materials. In the case of layer chicken manure, the final product is even more pelletized. As a result, our final product is guaranteed to be consistently uniform.

Possible Variation

The KNLL-SHWF is an innovative model specifically designed for large-scale operations. This machine boasts a unique open lane feature that allows materials to be conveniently placed from any side. This feature makes it suitable not only for composting but also for effectively mixing materials.

inquire

Specifications

ModelCapacity
(m3/day)
Pit Width
(m)
Manure Height
(mm)
Rotary Motor
(kW)
Running Motor
(kW)
Sliding Motor
(kW)
Hydraulic Motor
(kW)
Running Speed
(m/min)
KNLL-4000(KNLL-4000W)5.9-11.8(11.8-23.6)4m(x2 pits)9007.5x20.1x4(0.1x2)1.50.6-1.7
KNLL-5000(KNLL-5000W)7.7-15.4(15.4-30.8)5m(x2 pits)9007.5x20.1x4 (0.2x4)(0.1x2)1.50.6-1.7
KNLL-6000(KNLL-6000W)9.5-19.0(19.0-38.0)6m(x2 pits)9007.5x20.2x4(0.1x2)1.50.6-1.7
KNLL-4000H(KNLL-4000HW)9.0-18.0(18.0-36.0)4m(x2 pits)12007.5x20.1x4(0.1x2)1.50.6-1.7
KNLL-5000H(KNLL-5000HW)11.7-23.4(23.4-46.8)5m(x2 pits)120011x20.1x4 (0.2x4)(0.1x2)1.50.6-1.7
KNLL-6000H(KNLL-6000HW)14.5-29.0(29.0-58.0)6m(x2 pits)120011x20.2x4(0.1x2)1.50.6-1.7
KNLL-4000SH(KNLL-4000SHW)14.6-29.2(29.2-58.5)4m(x2 pits)150015x20.4x4(0.2x2)2.20.6-1.7
KNLL-5000SH(KNLL-5000SHW)19.1-38.2(38.2-76.5)5m(x2 pits)150018.5x20.4x4(0.2x2)2.20.6-1.7
KNLL-6000SH(KNLL-6000SHW)23.6-47.2(47.2-94.5)6m(x2 pits)150018.5x20.4x4(0.2x2)2.20.6-1.7
