Scrubber (Odor Reduction Device) Fermentation Option Accessory

The scrubber is a simple device developed
for odor reduction.

During the fermentation process of the raw materials, nitrogen is released as ammonia.
The scrubber is a simple device developed to reduce the odor caused by this ammonia
emission.

Features of the product

During the fermentation process of the raw materials, nitrogen is emitted as ammonia. The scrubber is a simple device developed to reduce the odor for effective odor reduction.

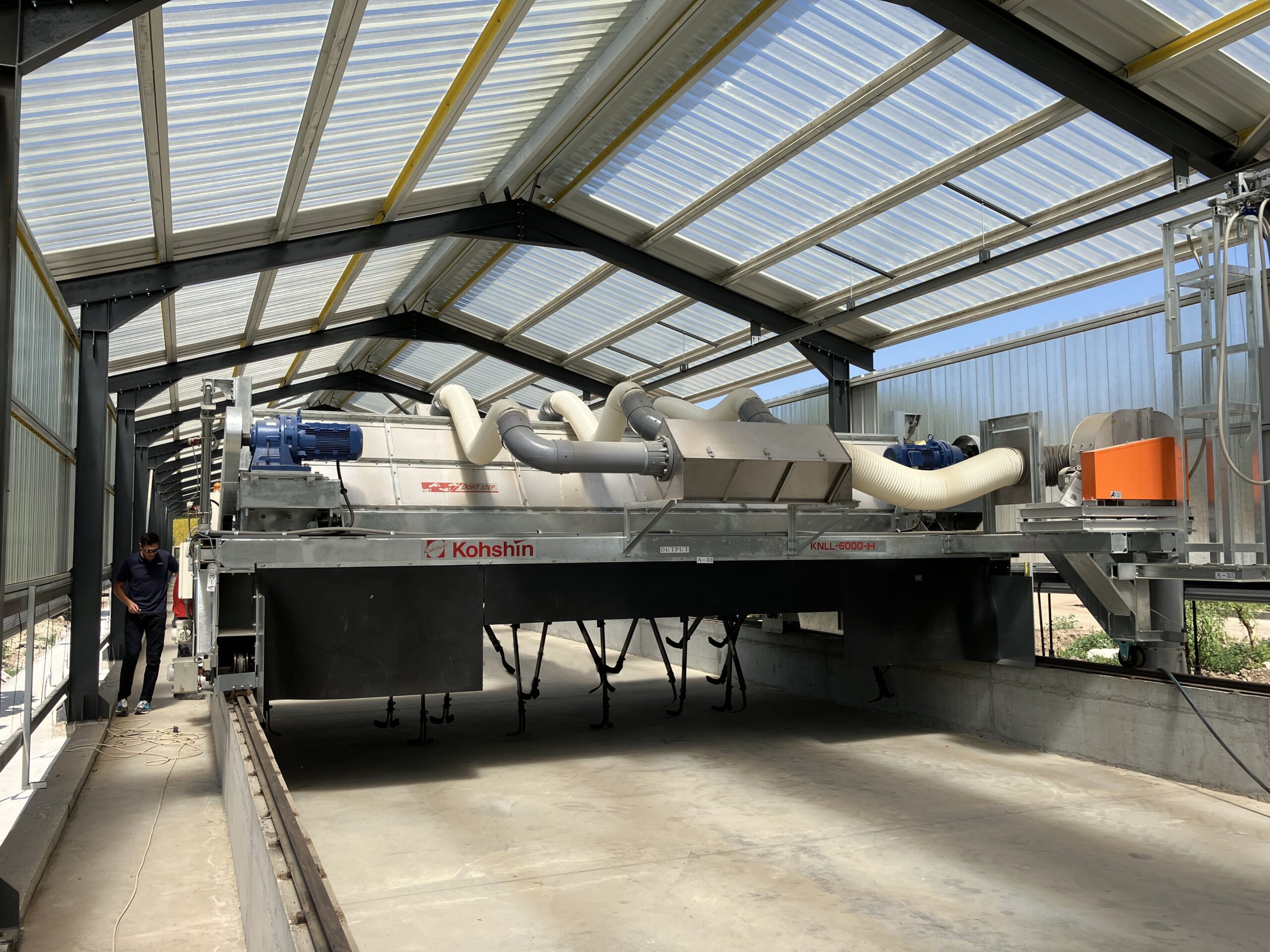

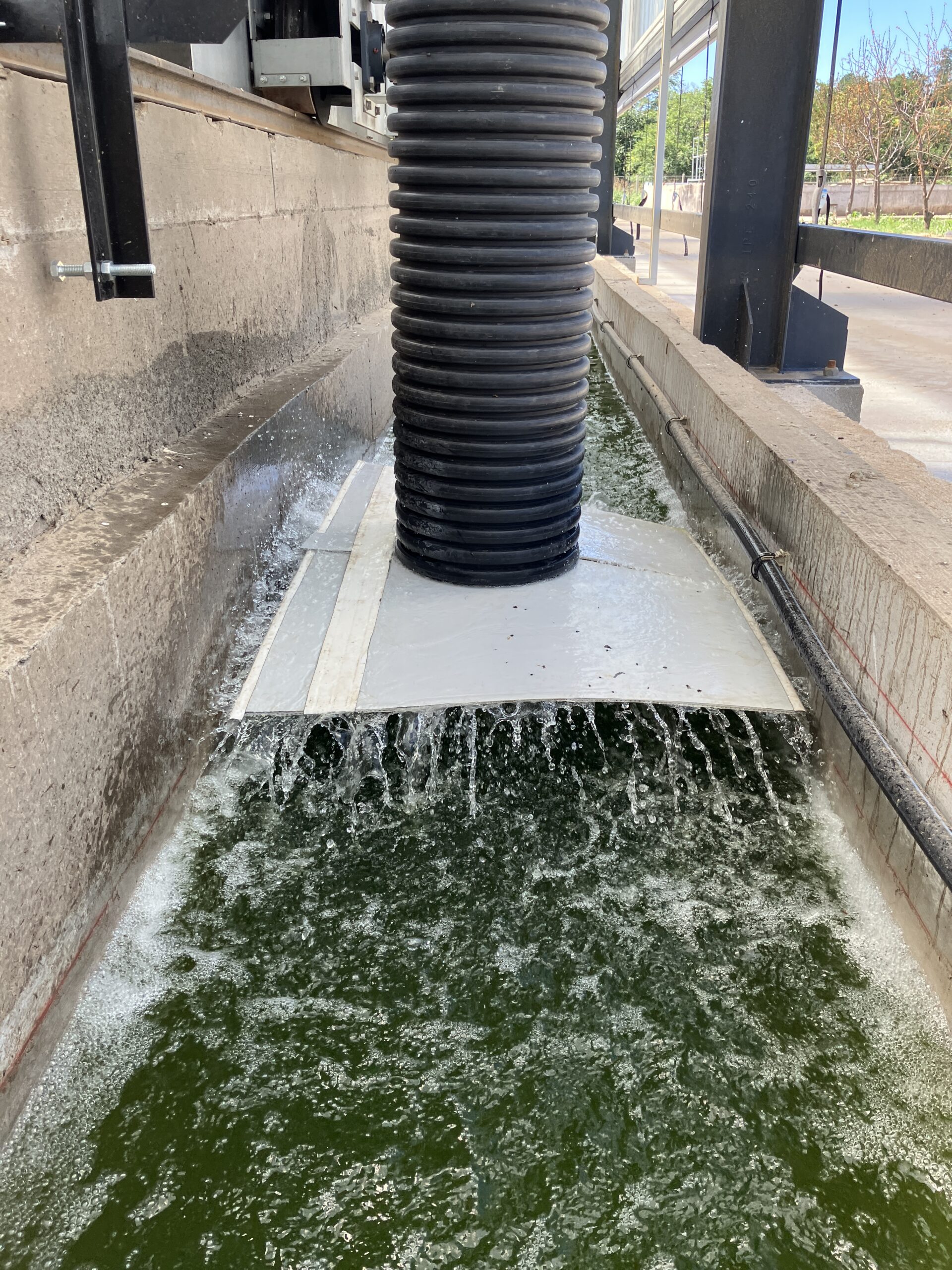

The scrubber is attached to the rear of the fermentation machine and moves together with the equipment. It functions by creating a pool next to the pit and blowing the collected ammonia gas into the water to reduce the odor. All frames are plated, and other components such as covers, dampers, tubes, and exhaust fans are made of corrosion-resistant stainless steel. This device can also be retrofitted as needed.

inquire

Specifications

Primary Fermentation Tank

Livestock manure is usually excreted with a high moisture content. Therefore, it is necessary to mix it with dried co-materials to adjust the moisture content to an appropriate level for fermentation. Conversely, if the raw materials are dry, water needs to be added. This moisture adjustment is a critical key point for successful fermentation. At our company, we ensure proper moisture adjustment in the primary fermentation tank before loading the raw materials into the fermentation machine, allowing for more efficient fermentation and higher-quality compost production. Furthermore, with the expertise of our company, when the primary fermentation tank is used correctly, it is possible to reduce the emission of ammonia.

The air circulation systemThe air circulation system

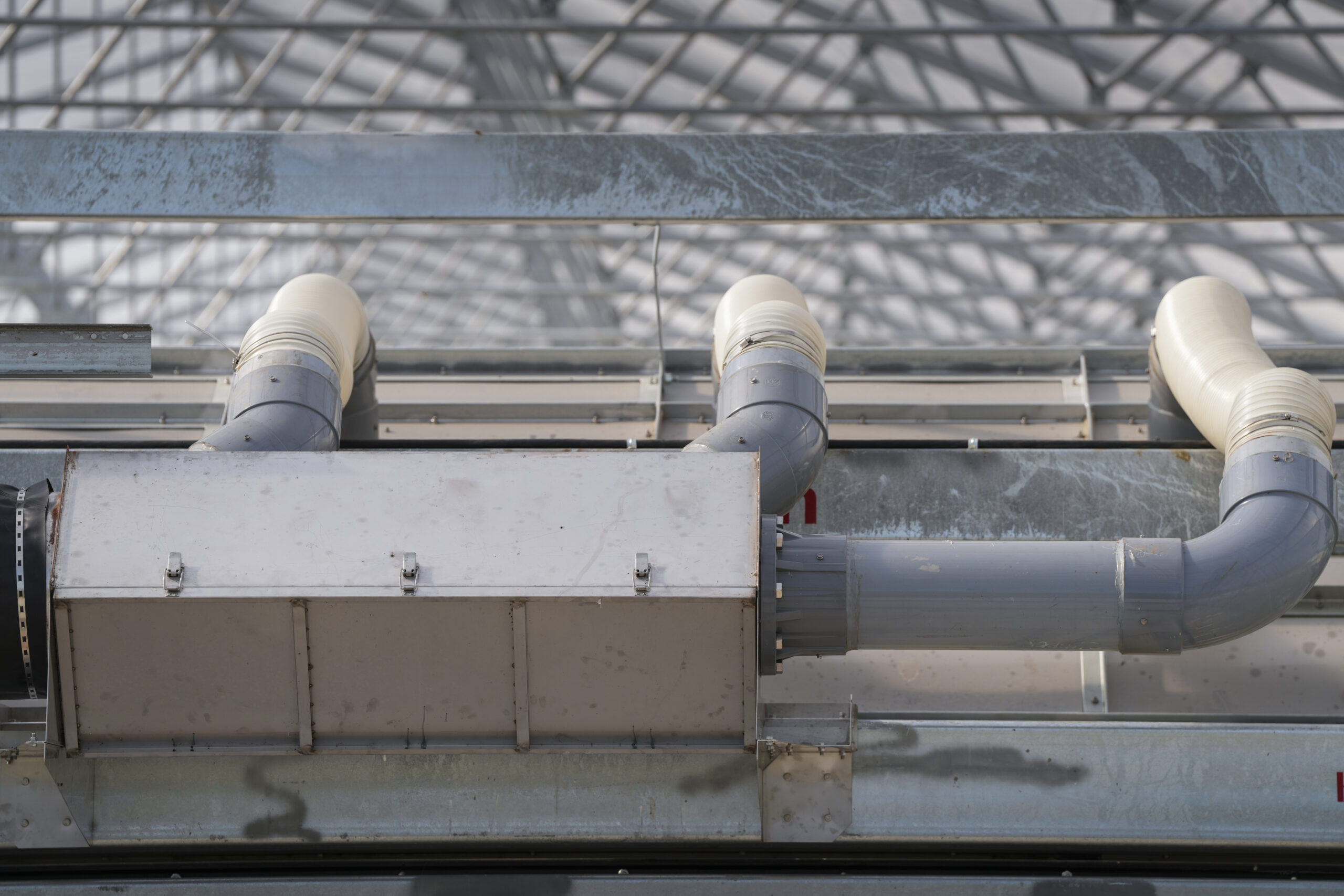

Fermentation is facilitated by aerobic bacteria, which makes the supply of fresh and warm air crucial. While it may appear simple at first glance, finding the optimal pipes and blowers can be a challenging task. Our air circulation system is designed based on extensive research to provide the ideal pipes and blowers for promoting drying and fermentation. The blowers can be controlled by a timer, allowing for adjustments to the airflow based on seasonal and weather conditions. We recommend using this system, especially in colder regions and during high humidity seasons.

The air circulation system - Auto Hopper (AH Type)

It is possible to install an Auto Hopper (AH Type) in conjunction with the fermentation machine for intermediate feeding of high-moisture content raw materials. As fermentation progresses, the moisture content of livestock manure decreases due to evaporation. By adding high-moisture fresh manure into the process and mixing it with the fermenting manure, it enables efficient processing and increases the processing capacity.
