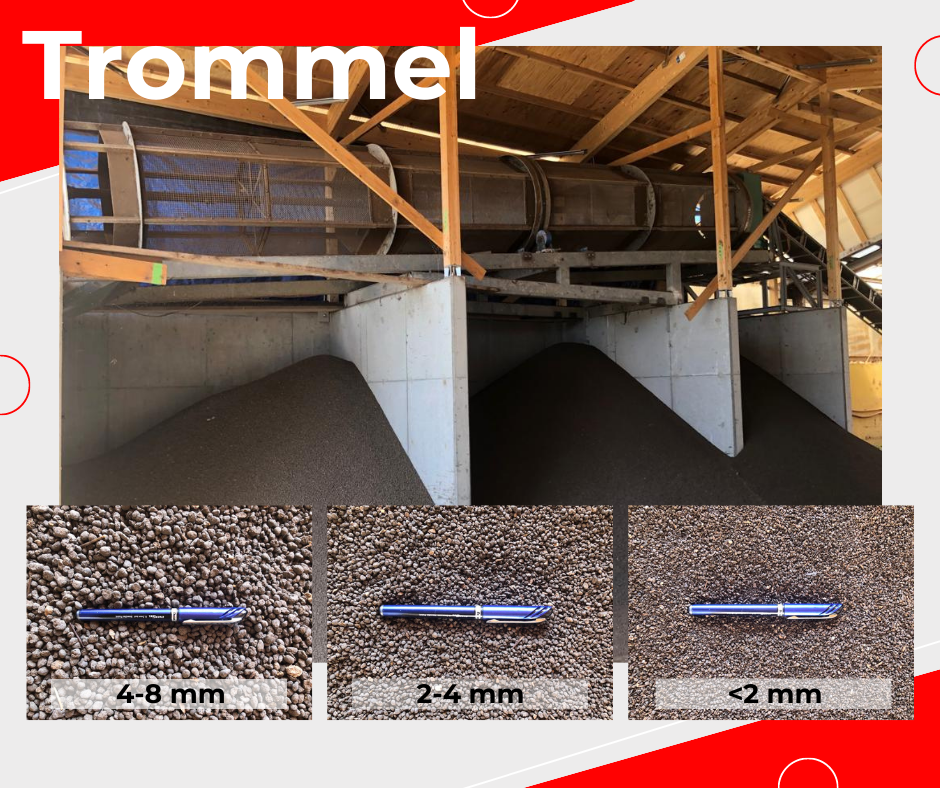

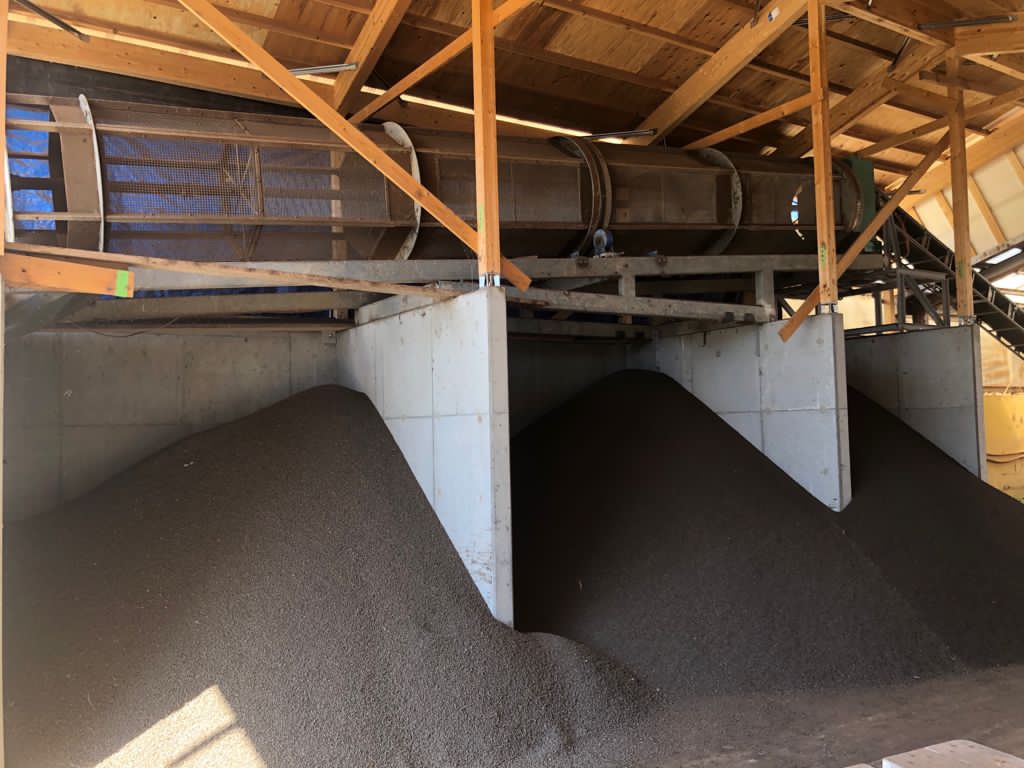

The final product is loaded into the hopper, from where the conveyor belt transports it to the trommel. As the trommel rotates smoothly, it effectively sorts the materials by size, ranging from 0mm to 12mm. Positioned atop the pit walls, the trommel ensures that the materials are dropped separately into different areas according to their respective sizes. This prevents any potential mixing of the materials once again.

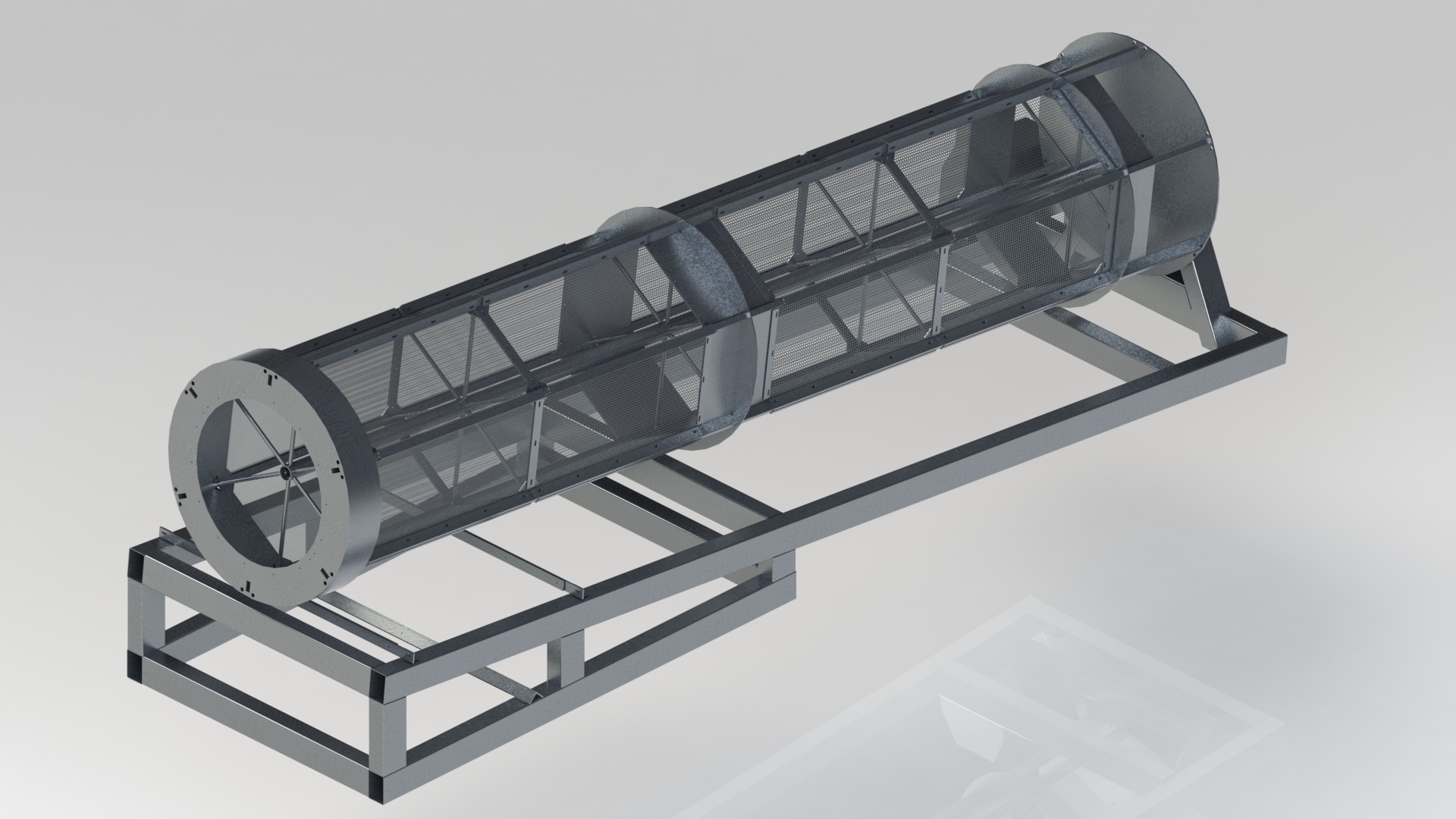

One of the unique features of our trommel is the use of a hexagonal shape for the passage through which the product travels. This design facilitates easy product discharge and allows for the replacement of only the damaged portion of the mesh in case of any damage. Additionally, the trommel's angle is optimized for effective classification, preventing product retention within the drum.
Sorting process
Sorting process

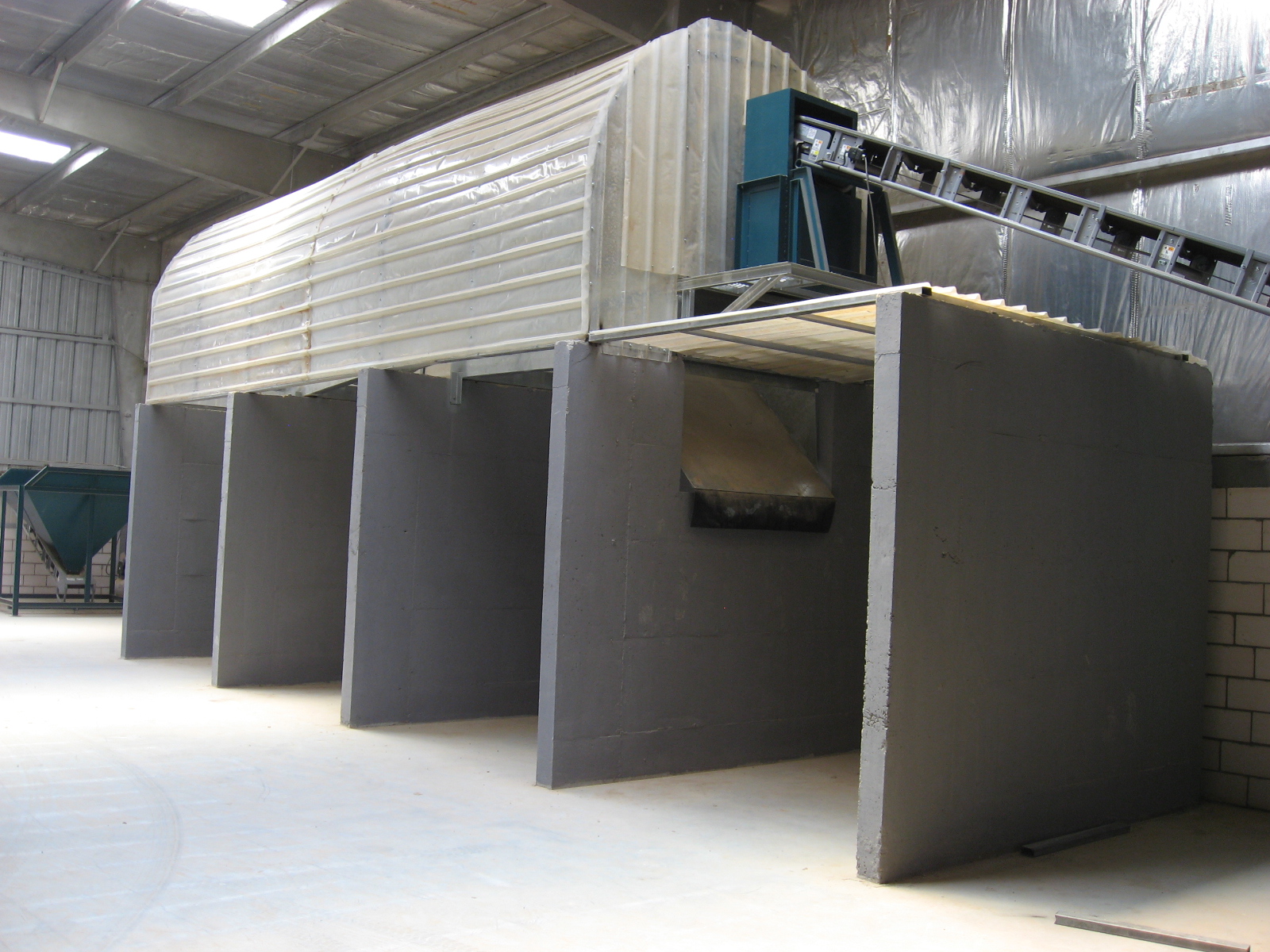

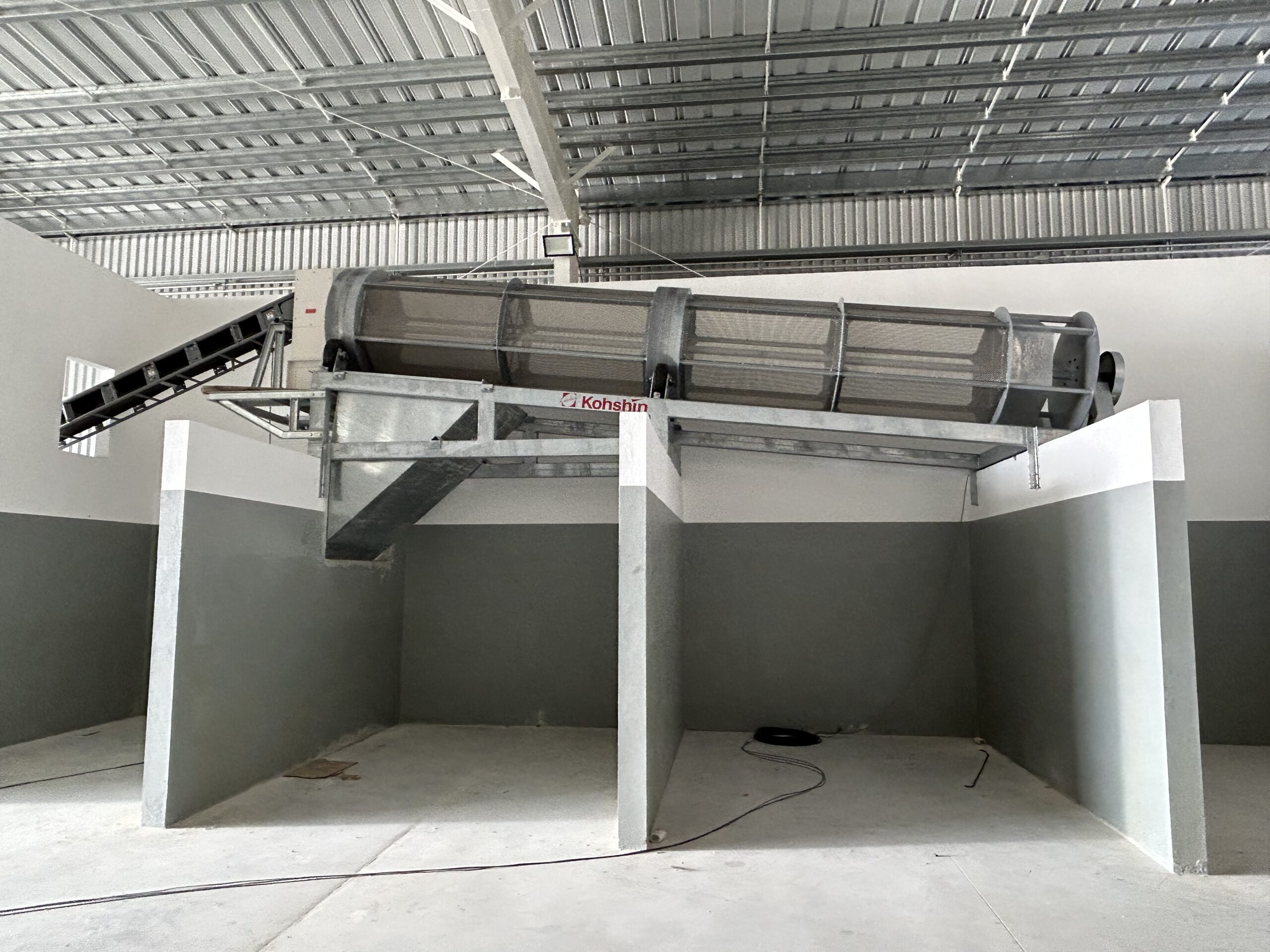

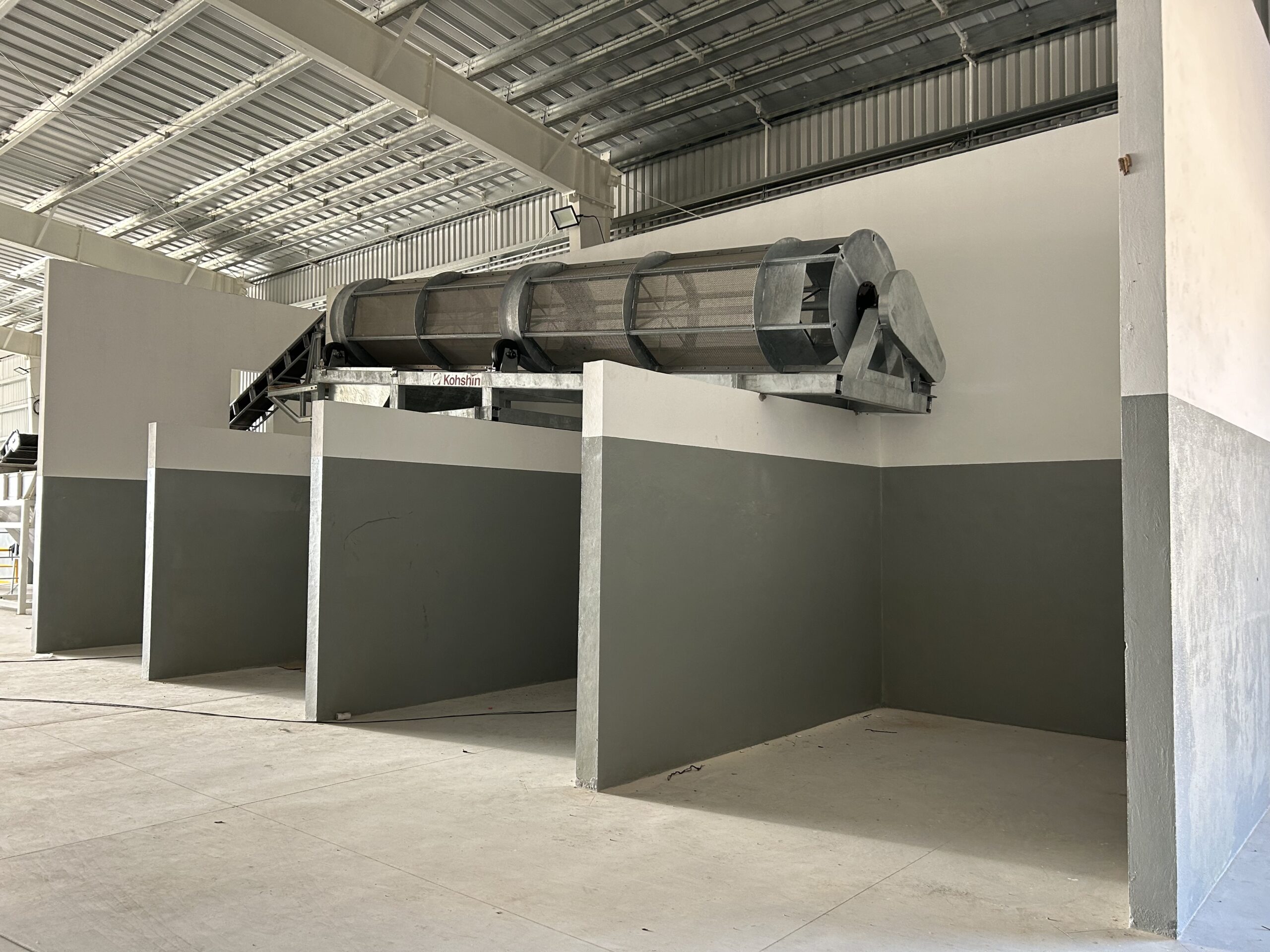

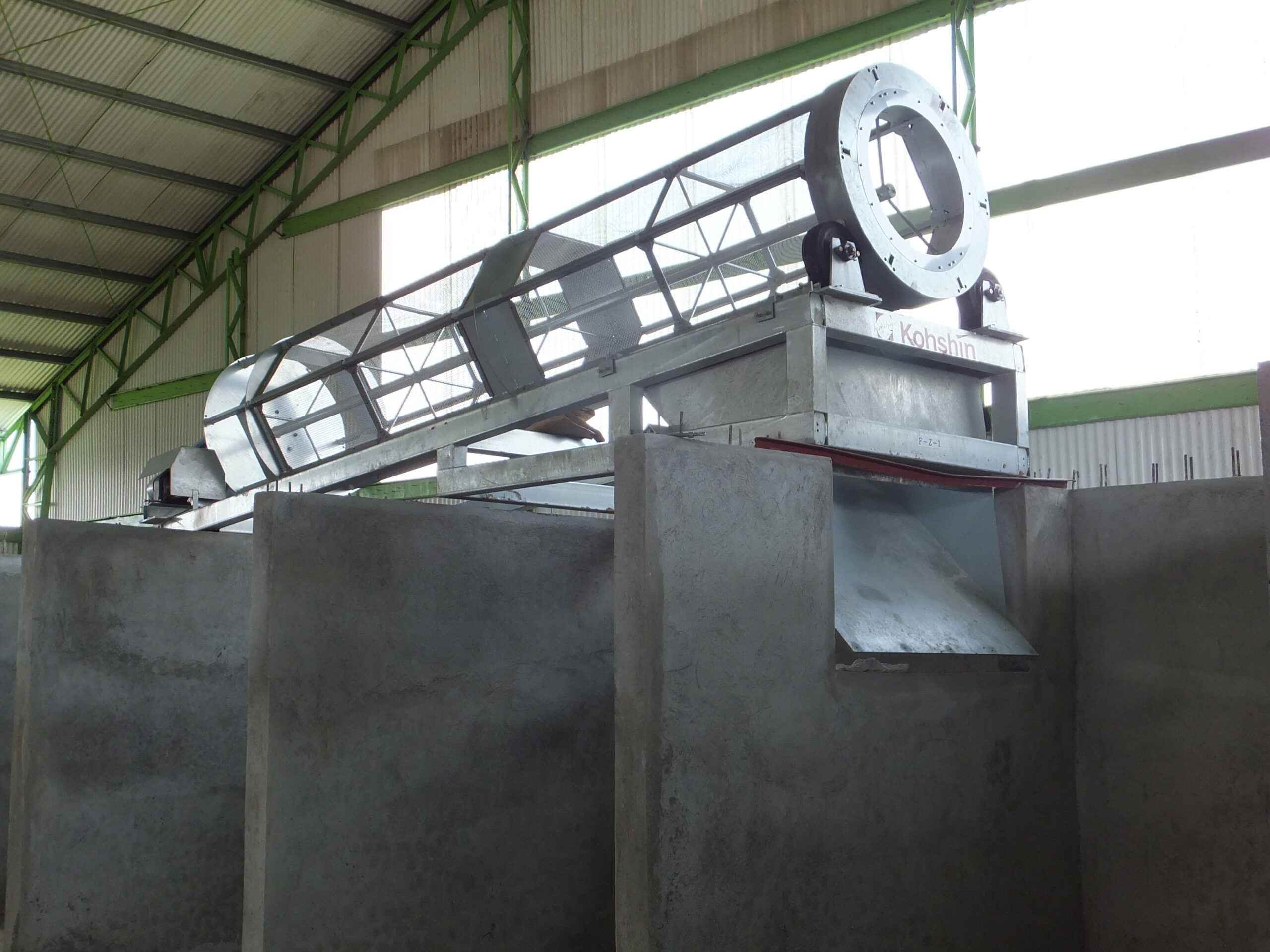

Trommel
Trommel
Trommel
A trommel is a machine used to screen the final product discharged from the fermentation and drying machines, sorting the fertilizer by size through a rotating sieve.
Full-auto Packer
Automatic system for bag feeding, filling and closing (impulse-sealing). The compact design with a minimum space serves to improve packing work and to save labor cost.This is really a kind of smallest auto-bagging machine.

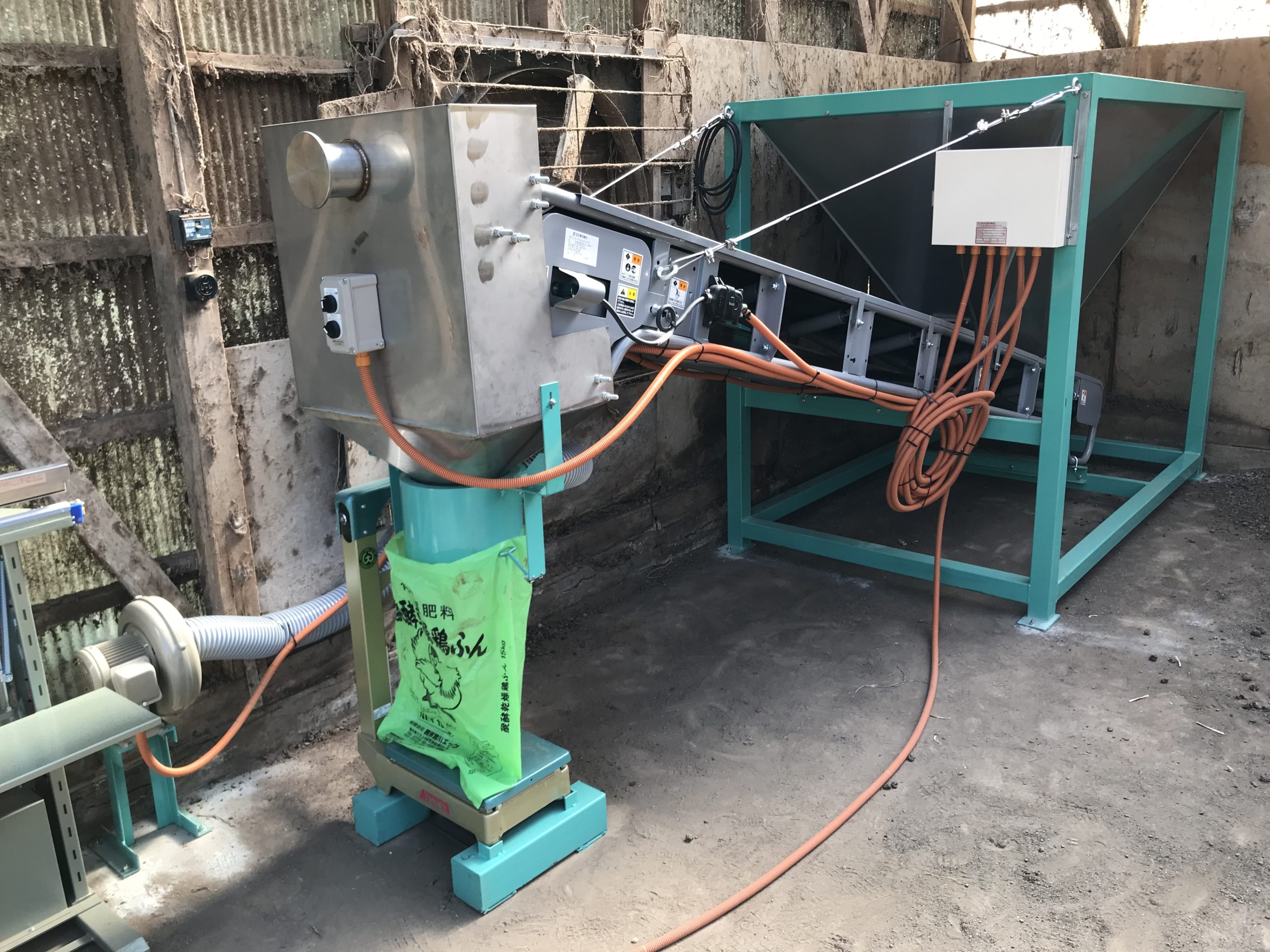

Semi-auto Packer
It is a bagging machine that uses non-woven fabric bags for packaging. It can pack weights
