VENUS 2.0 Cage Cleaning Robot

Achieve better poultry hygiene by limiting
manual cleaning efforts

Cleaning cages manually is a time-consuming and physically demanding task that involves
certain risks. VENUS has been developed to alleviate the burden of such rigorous cleaning
tasks. With the newly developed VENUS version 2.0, durability and user-friendliness have
been further improved, making it more suitable for the specific needs of farms.

Features of the product

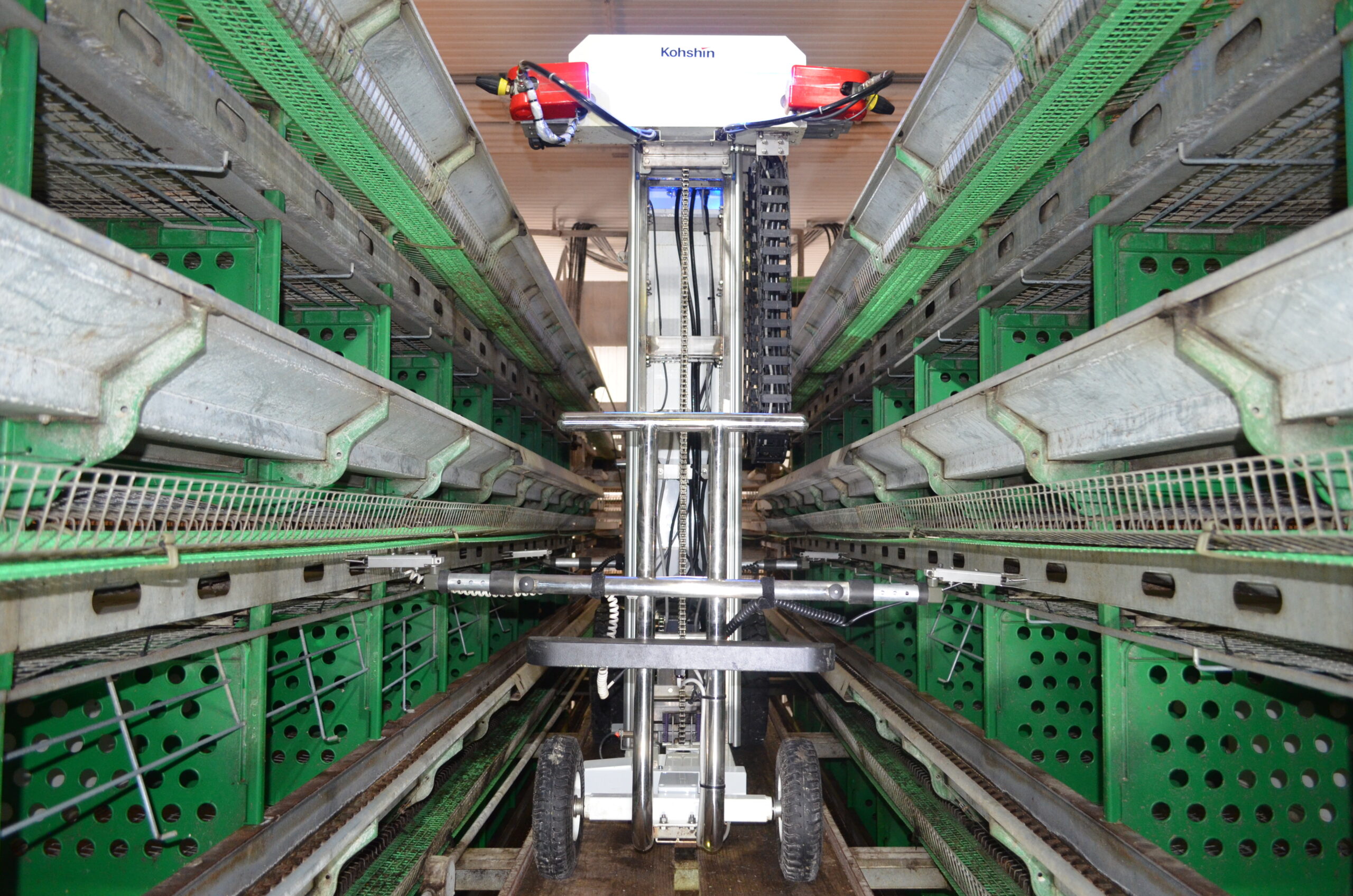

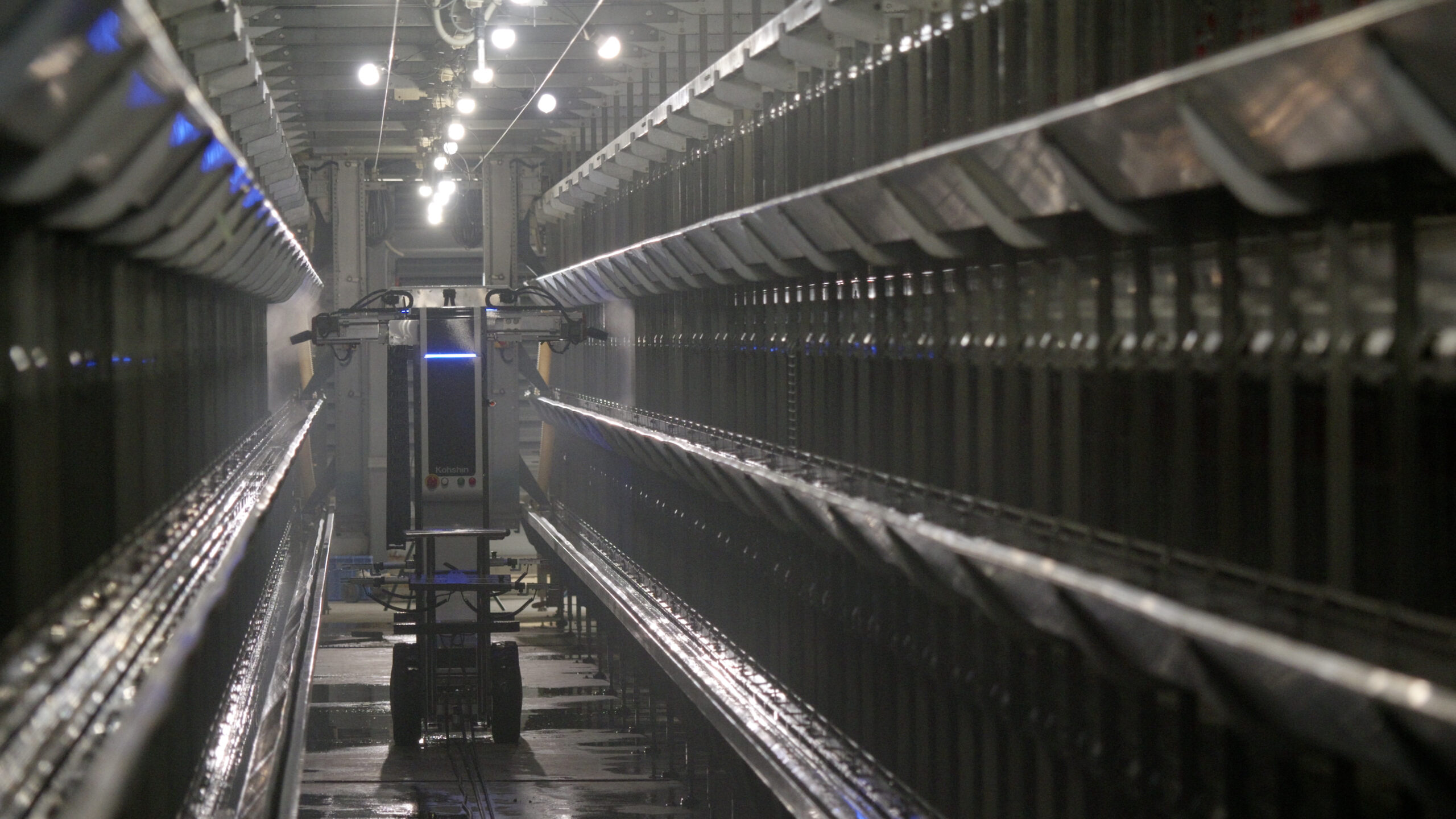

Cleaning cages with different specifications

With VENUS 2.0, you can clean multiple levels of cages, up to a height of 4 meters (6 tiers), and accommodate aisle widths ranging from 0.6 meters to 1.4 meters. Compared to the previous model, VENUS 2.0 offers enhanced versatility, allowing it to adapt to various poultry houses and aisles. Its improved design ensures efficient and effective cleaning, providing a reliable solution for maintaining hygiene and sanitation in poultry farming facilities.

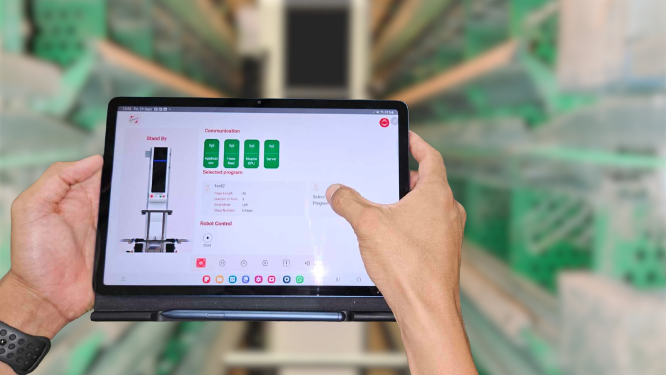

Easy operation with a tablet

Customers can easily operate and configure the machine using their own tablets. They can save cleaning patterns, allowing them to repeat the cleaning process in multiple poultry houses with just one setup.

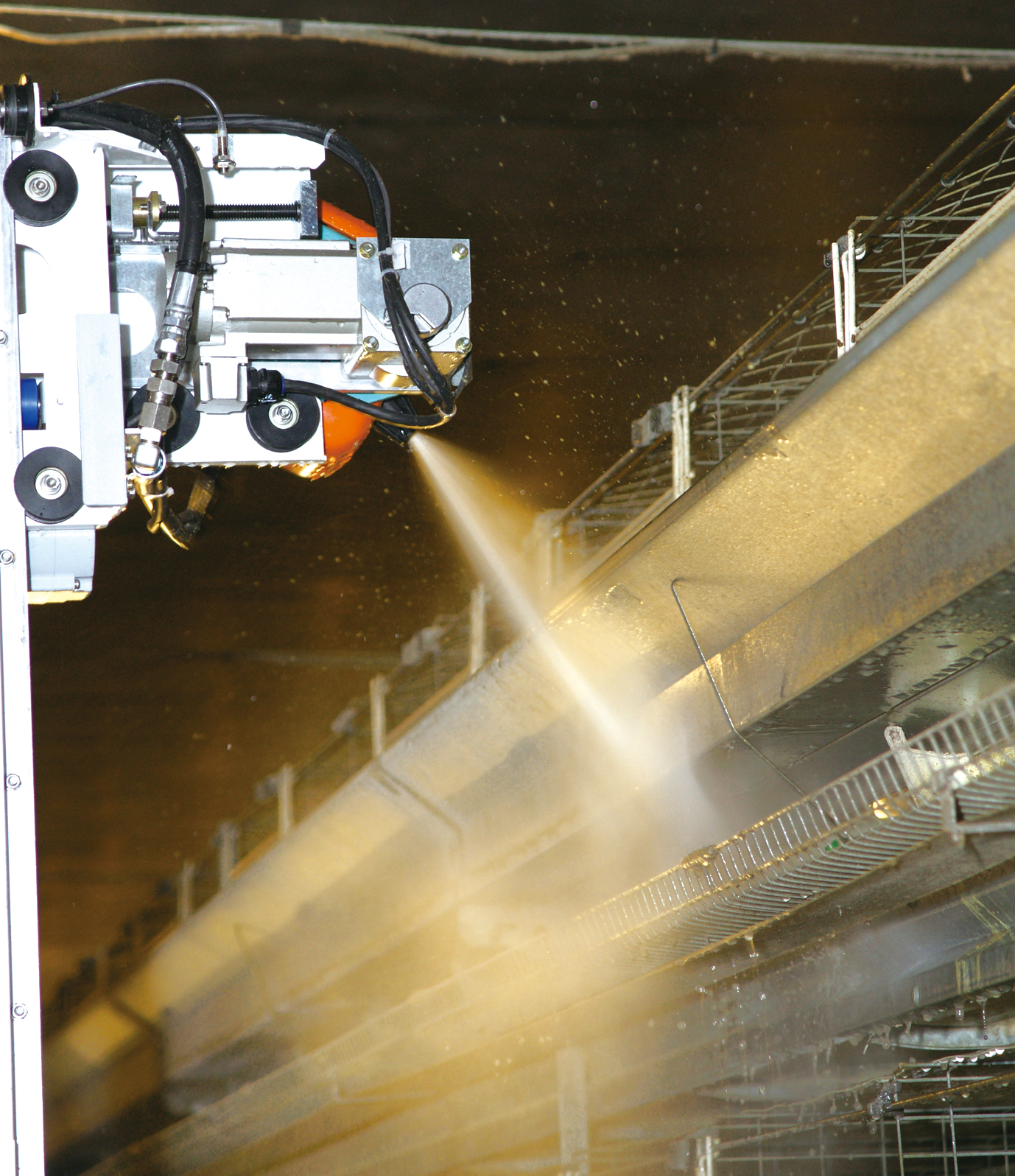

Flexible programming

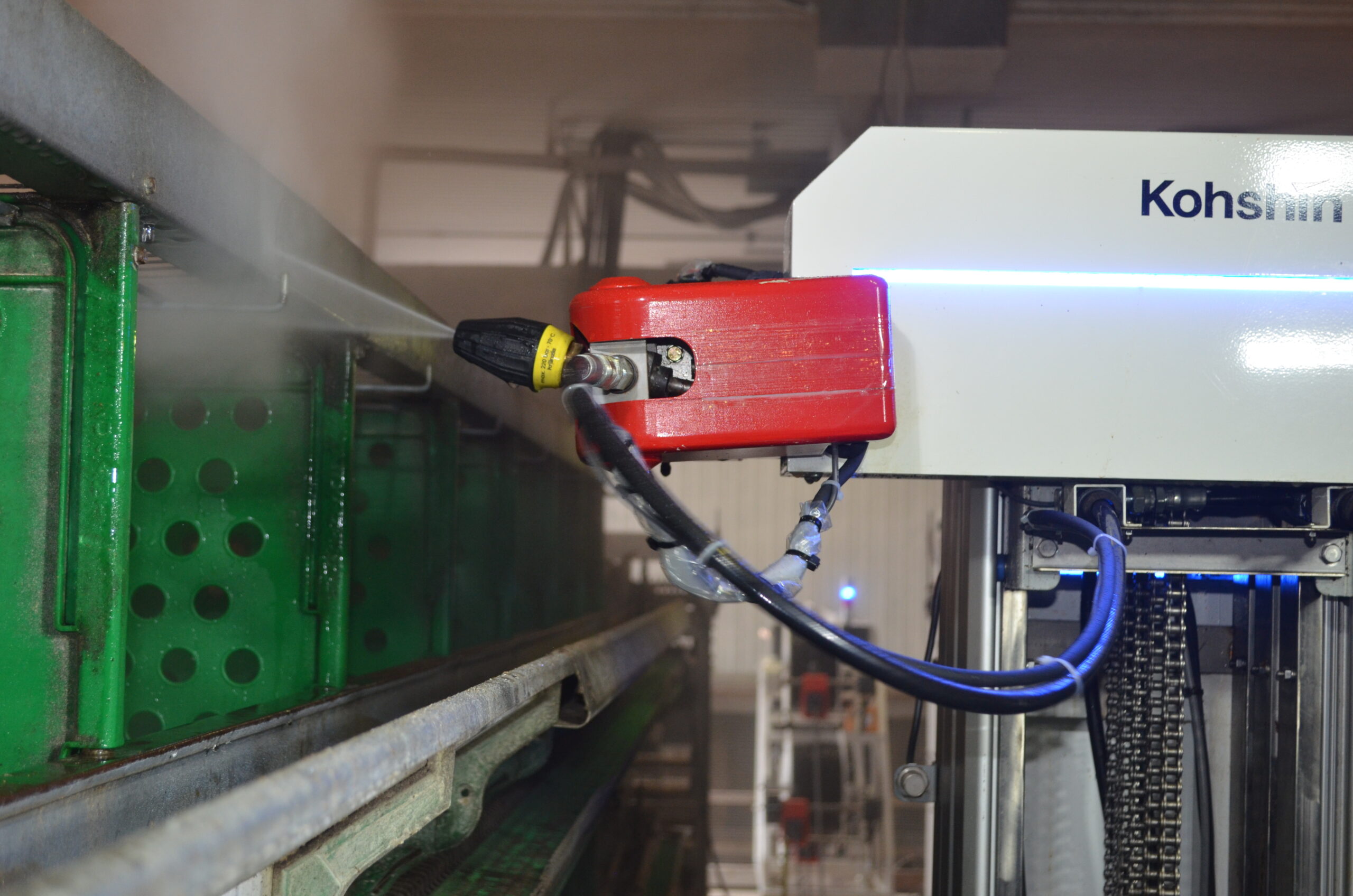

The flexible programming allows the nozzles to rotate while the mechanism moves up and down, enabling the cleaning of areas like chick stage cages and previously hard-to-reach spots.

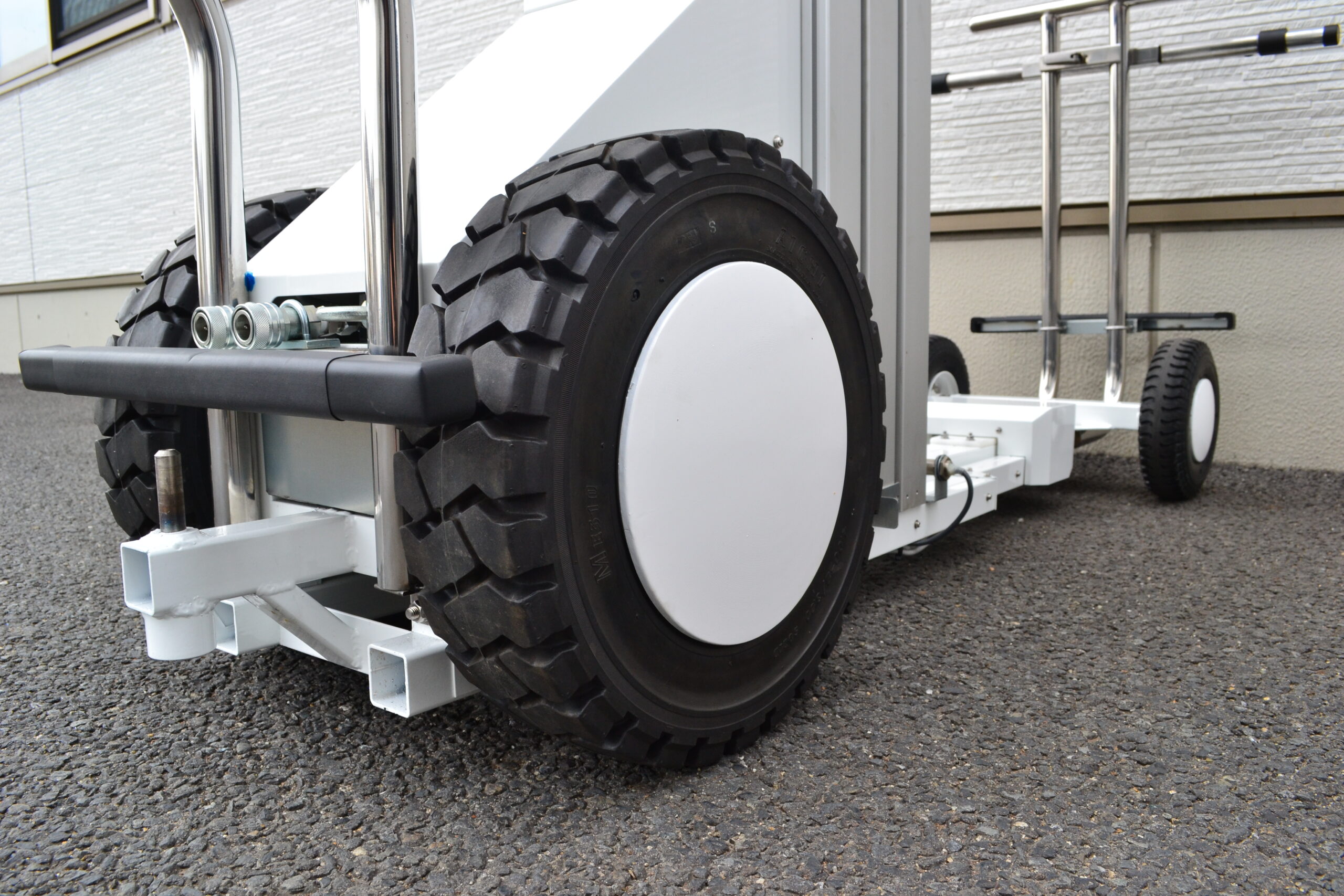

Slip prevention

By increasing the diameter of the wheels, the traction rate is improved, allowing continuous cleaning of cages up to 100 meters in length (an increase of 30 meters compared to the previous model).

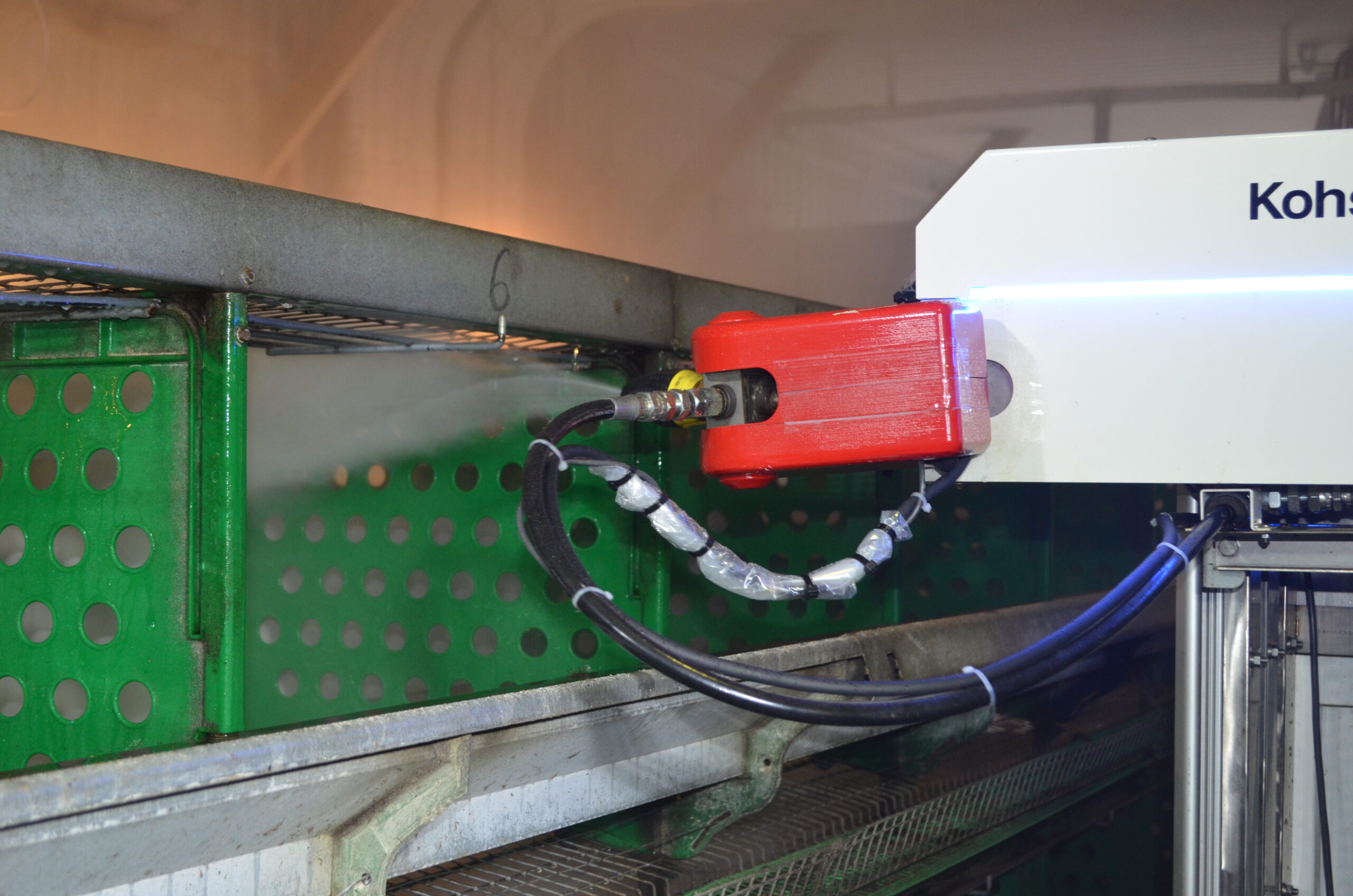

DC brushless motor

Compared to the generic motor used in the previous model, the high position accuracy of the DC brushless motor allows for precise setting of the areas to be washed. Additionally, the required power supply for the VENUS main unit has been changed to single-phase 100V.

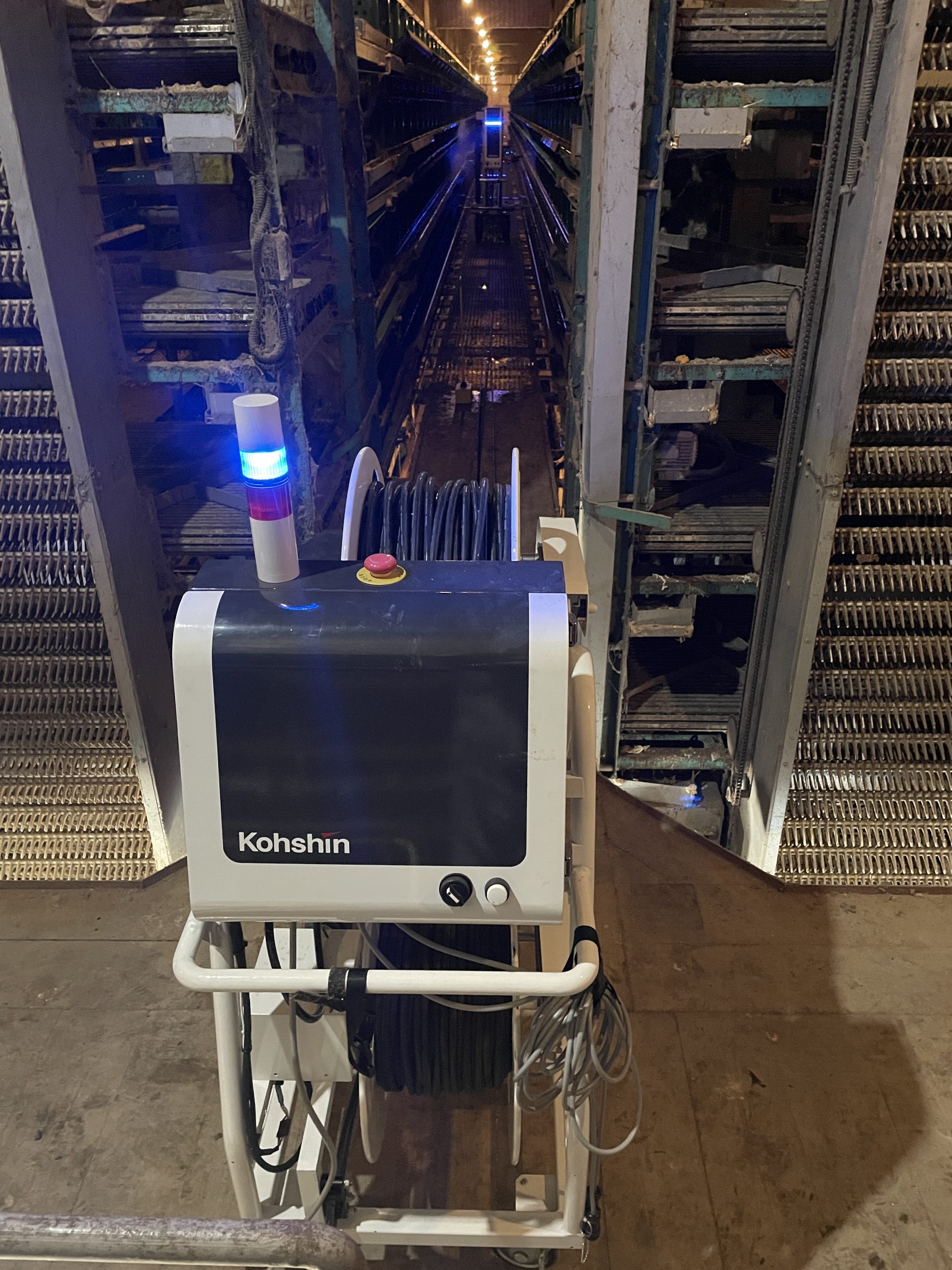

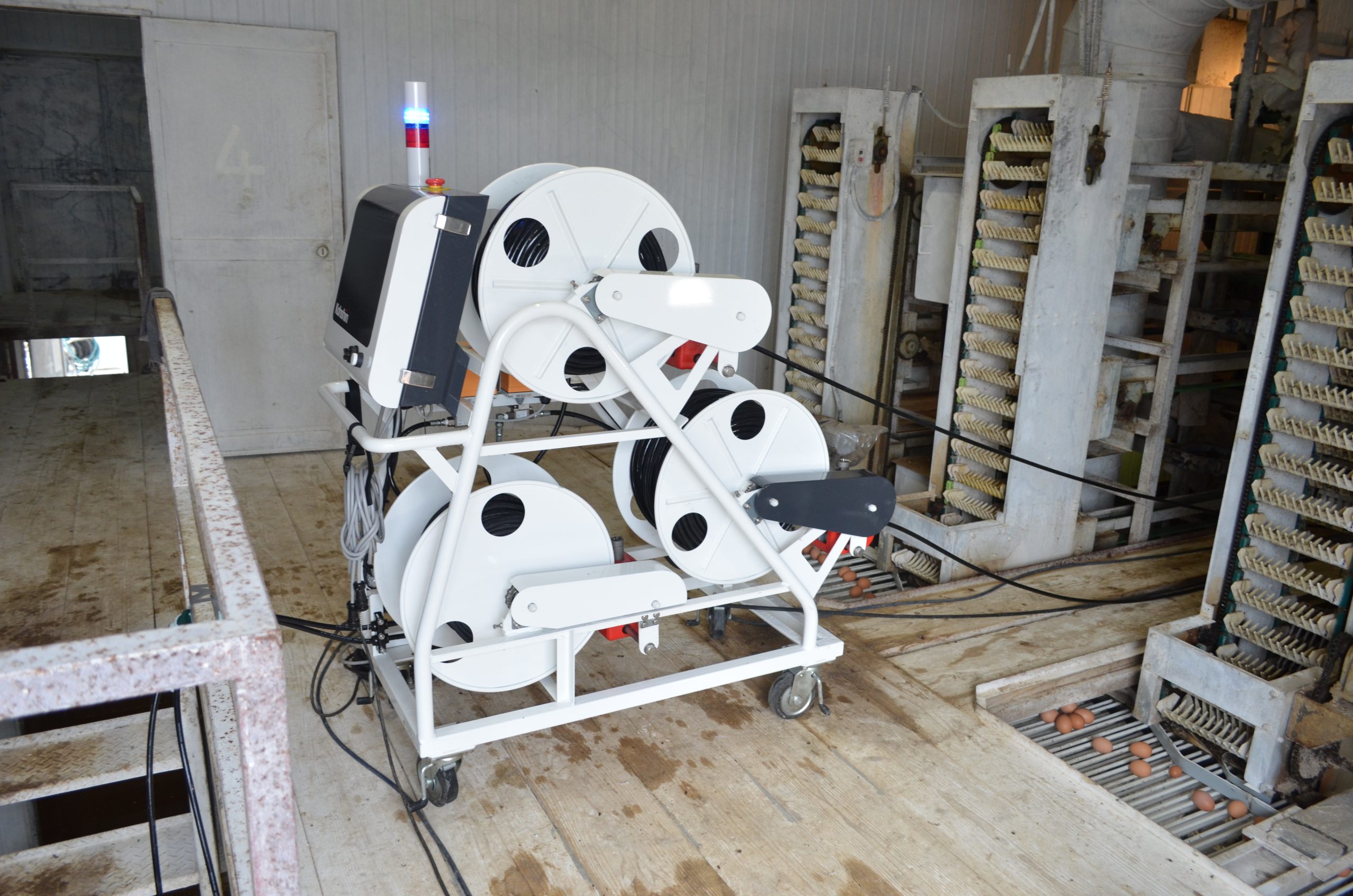

Hose reel

The hose reel is synchronized with the machine body, and the hose is automatically unwound and rewound. Also, with just one button, the hose reel follows the machine body and moves along the aisle.

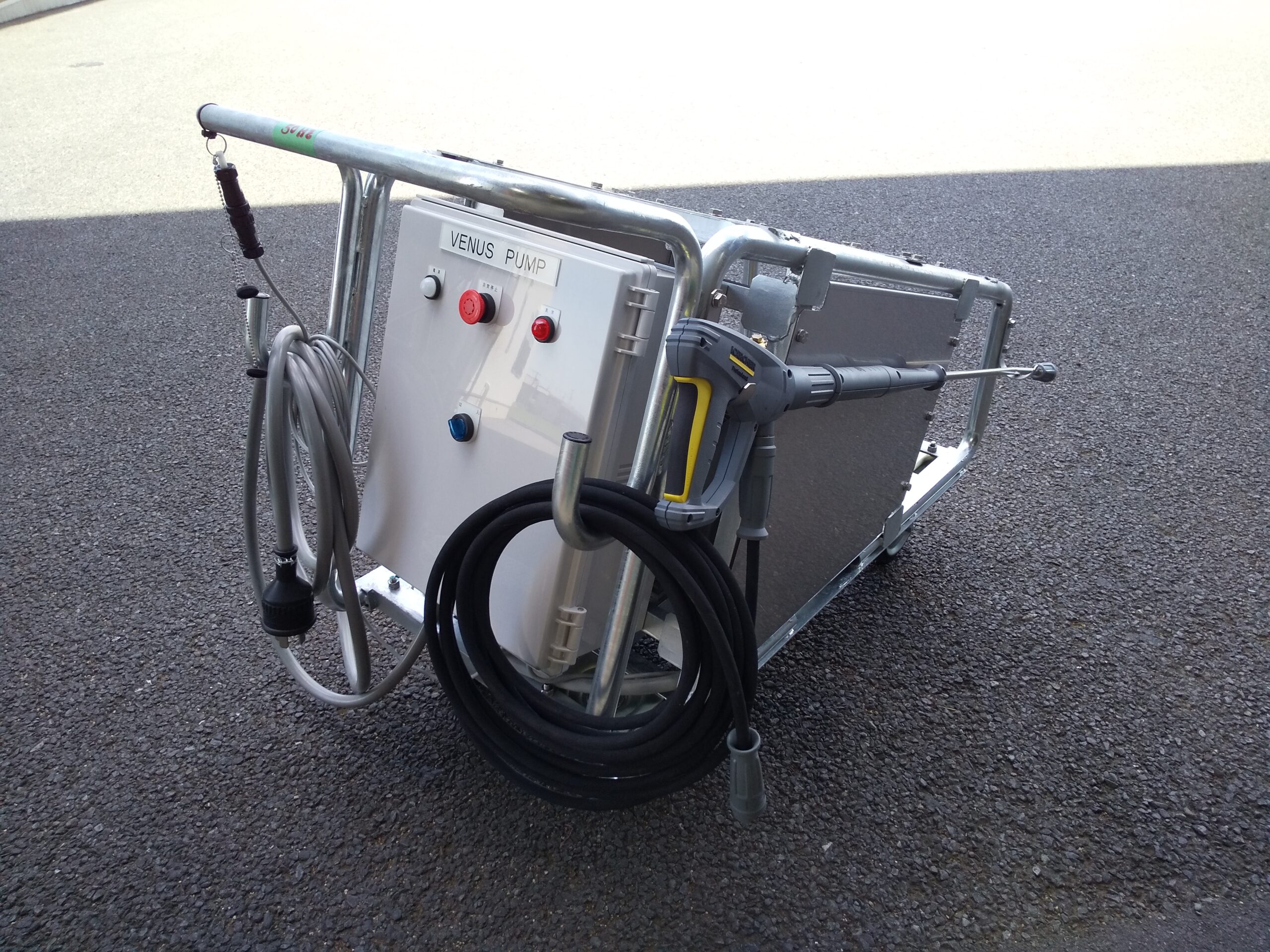

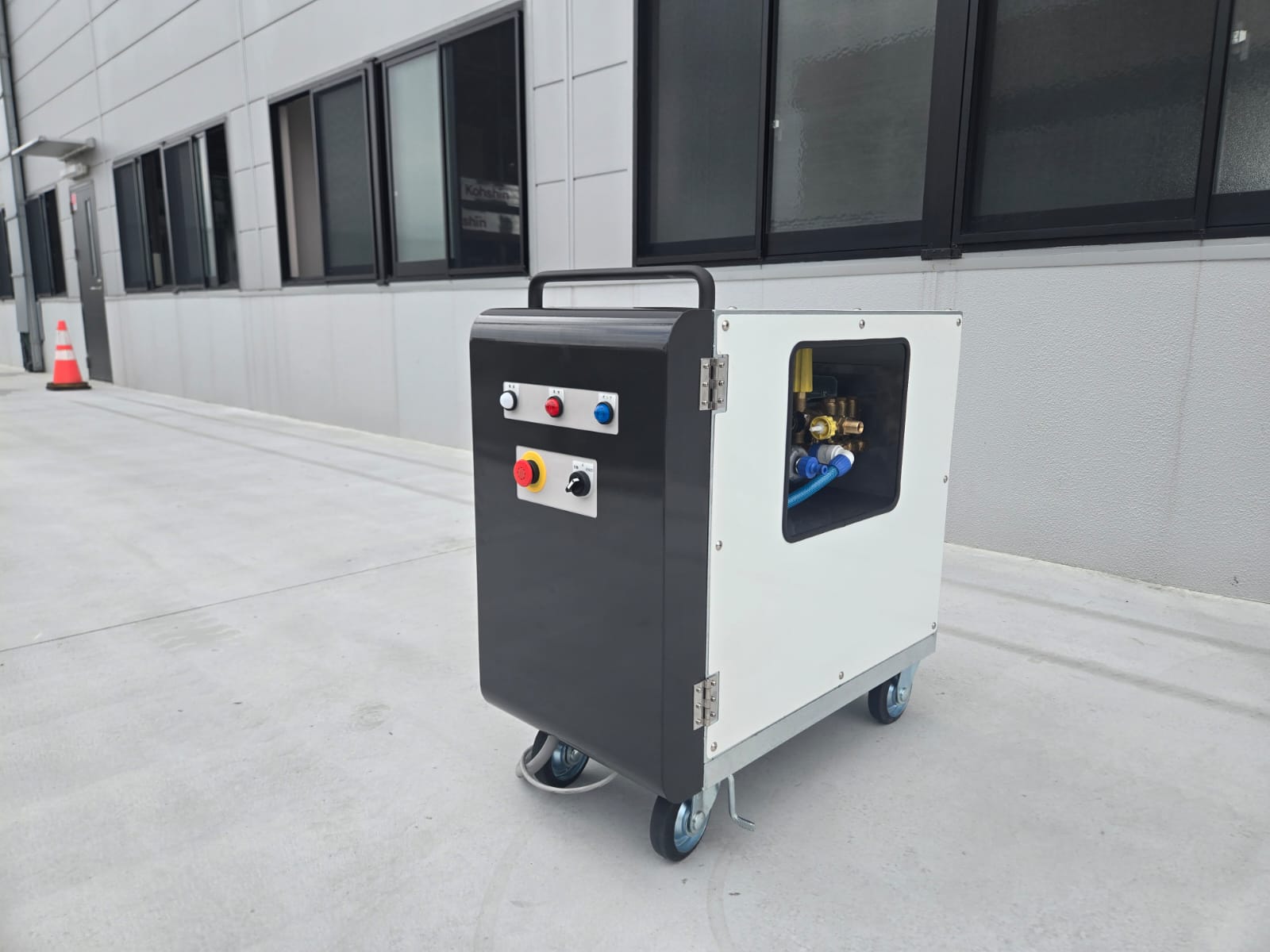

Koshin's original high-pressure pump

It adopts a crank mechanism, increasing durability. With a maximum pressure capacity of 25 MPa, it is easy to maintain as well.

inquire

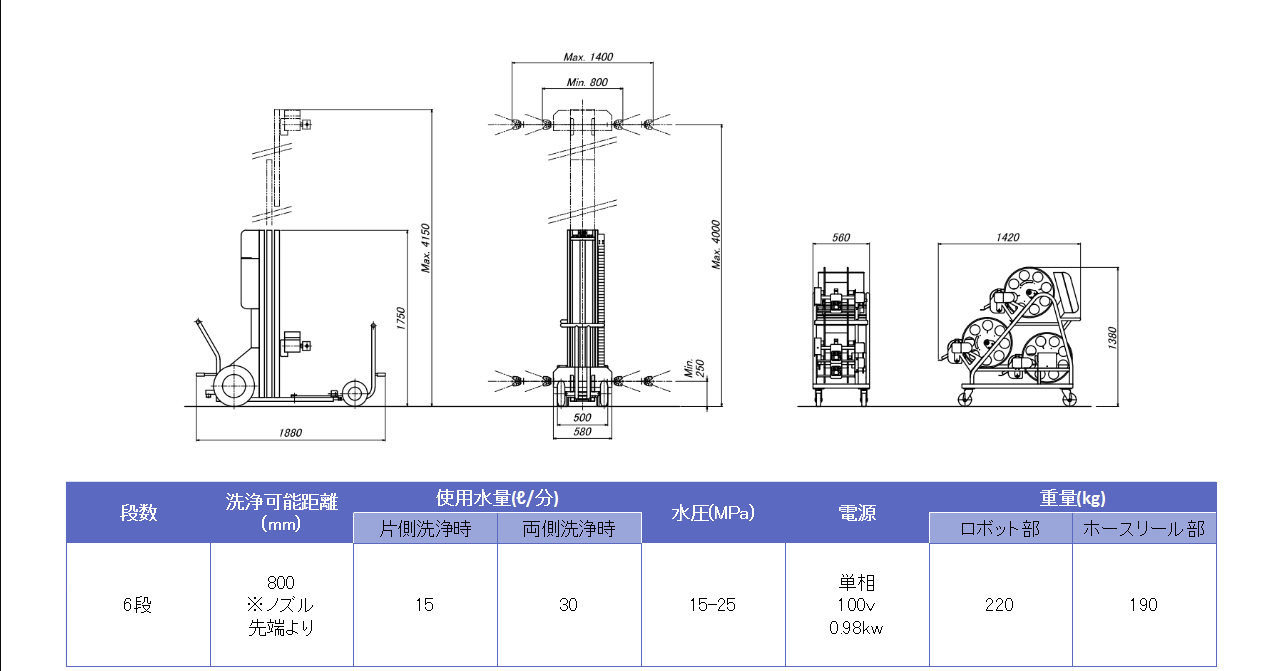

Specifications

Specification

Cleaning cages manually is a time-consuming and labor-intensive task that can also be hazardous. VENUS was developed to alleviate these harsh cleaning tasks. The newly developed VENUS version 2.0 offers improved durability and user-friendliness, catering to the specific needs of farms even better.
